I have a 2017 EL Limited with power litigate, power running boards. I’m having issues not getting any signal voltage to the wiper nor washer relay coils. Traced the common point via a schematic I found here but it is pointing to fuse 45 in the SJB in the cabin. On my truck this fuse is shown as not used spare.
I would appreciate if someone has the correct schematic that applies to my config.

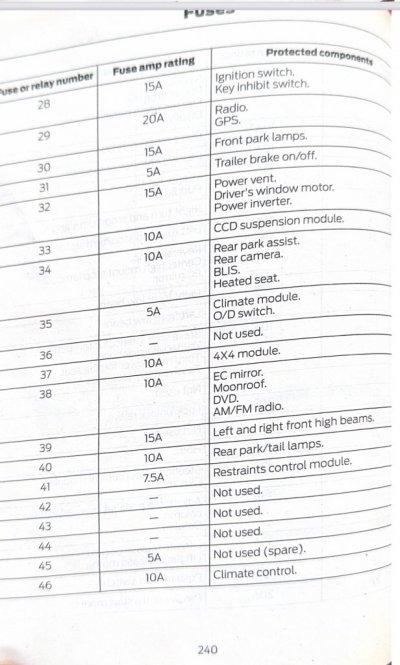

I attached the fuse from my manual so you can see the sjb doesn’t match with other docs i found here.
P.s. I manually went through the fuses and can’t even find one that is blown. I’m going or go out and meter them again but would really appreciate some insight.
I would appreciate if someone has the correct schematic that applies to my config.
I attached the fuse from my manual so you can see the sjb doesn’t match with other docs i found here.
P.s. I manually went through the fuses and can’t even find one that is blown. I’m going or go out and meter them again but would really appreciate some insight.
