Fuse panel

[jhoney]

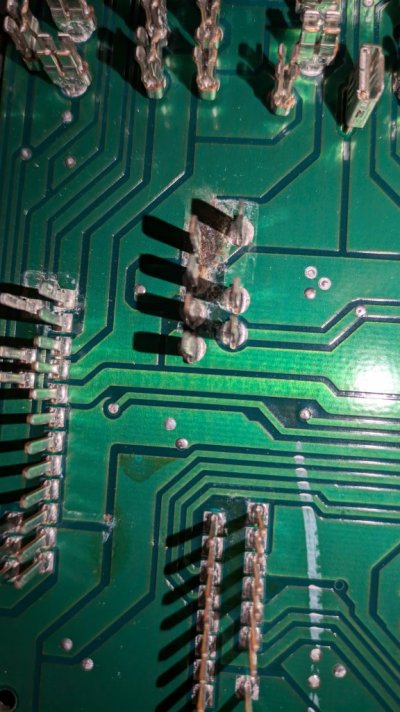

Can anyone help me identify this pin and is this repairable? It's an 03 and it's the black wire with the green stripe in the grey connector.
If it's not repairable where is the best place to get a new one. Rock auto is 500$.



[whtbronco]

I don't have a wire that color in my 2004 wire diagram. Closest I found was a wire identified as hot in Start and Run.

You might be able to fix the board. You need to clean the corrosion off it with an electrical cleaner, such as CRC QD Electrical Cleaner, and a tooth brush. Then you'll need to verify the integrity of the traces in the board. They can be repaired, but it takes a delicate touch and experience.

This thread that's a sticky at the top of the forum has lots of good info in it:

Another fuse box replacement ....

Hello! It looks like the recommended site is out of stock for the particular fuse box I need (2L1T-14A067-AN) and just about all other boxes. I'm sourcing for my '03 Ford Expedition 5.4L FX4. Do you all have any experience with rebuiltcarparts.com or any other recommendations for sourcing a...

www.expeditionforum.com



[Hamfisted]

Make sure you have the correct production date of your Expy (it makes a difference...) before ordering a fusebox kit.

2003 Expedition Fusebox Kit at FordPartsGiant







.



[engineer1]

Check this link https://www.expeditionforum.com/threads/newbie-here-dead-ins-cluster-radio-windows.24952/page-8
I have a factory wiring service manual for my '03 ED, and this matches my book. Open the pdf and circuit 3049 is the first cluster of info - you will see that number on the circuits. The bl/lg wire comes out of your fuse box in connector 207f - hot at all times, so be careful.



[Texasroadlawyer]

Central Junction Box is VIN specific, contact Vintage Parts Warehouse in Boca Raton at (414)425-3085 Part cost $410.31 plus shipping to your door
