Trying to install AVIC z140

[tw1112]

Hi all, new to the world of Expeditions as we just picked up a 2006 XLT the other weekend. I am trying to install a Pioneer Avic z140bh in place of the oem head unit and am trying to find the VSS and the reverse wire to tap into. Everything I have found on the search and google so far point me to earlier year models and I hear that wiring changes almost every year?

Also, on the back of the oem head unit, I have two plugs, the main power harness and then what seems to be the dvd harness and no subwoofer plug. My expedition doesn't have the overhead dvd player...so am I missing something? Thanks all for any help!



[oblivion]

you need this
Metra Part # 70-5521 | Ford wire harness | Metra Online

From Directed
Speed Sense gray/black radio harness or wiper motor

From Audiovox
Speed Sense GREY/BLACK (AC) PIN#63 OUT OF 70 PIN CONNECTOR ON PCM


for the reverse I just tapped into one of the reverse lights, longer wire but really easy to find.



[tw1112]

Thanks for the info Oblivion! Yeah I picked up a Scosche harness and have it pretty much wired up.

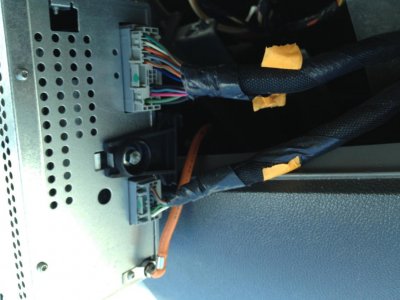

I attached a picture of the back of my oem radio. Am I wrong that the smaller of the two plugs is for a dvd player and not the sub?



[bricekin]

tw1112 - Did you look up the process for the a/v and nav lockout bypass? You'll want to do that if you want to be able to adjust nav settings while driving.
http://youtu.be/syl14gmIfSA

A thread over on AVIC411 says that you can find the Grey/Black VSS wire in the radio harness on an 05. I'd check there first. Also shows that you can get the reverse in the harness at the steering column.
http://avic411.com/index.php?/topic/2240-need-vss-on-2005-ford-expedition/



[tw1112]

Thanks bricekin. Yeah I looked it up on YouTube also but am having a lot of trouble taking the pin out. Found another way to bypass so I might try that first.

Yeah I will take a look for the grey black wire on the harness, but I'm not sure how I would check to see if it is the vss or not? Only way would be to hook it up first and check the settings while I drive no?



[bricekin]

Well, one of the ways you can tell is if the scosche harness has a wire that occupies the same slot on the factory harness. If it does, it is likely not the VSS.

If you have a digital multimeter, I could be wrong on this, the VSS should be an AC voltage signal. Obviously, you would have to measure this while the vehicle is in motion.



[tw1112]

That's a good idea about checking the harness wiring. I will do that this afternoon when I get a chance to work on my truck again. Man I wish I would've just gone with kenwood or alpine so I wouldn't have to deal with the vss heh



[bricekin]

That's a good idea about checking the harness wiring. I will do that this afternoon when I get a chance to work on my truck again. Man I wish I would've just gone with kenwood or alpine so I wouldn't have to deal with the vss heh

Both Kenwood and Alpine also use a VSS input. None of them actually require it. It's mostly just so that if the unit doesn't have GPS signal, it doesn't have to wait for signal to come back before it can keep tracking you. I never had it hooked up in my Thunderbird and I didn't have it hooked up for about 7 months in my A4 and they worked fairly well without it.



[rexster314]

I'm wondering if putting an on/off switch on the VSS line would let me enter a destination while driving?



[GAINMOB]

you have to ground the parking wire i believe to have all options working...you can also youtube bypass for your make/model and they'll show you...some are as simple as swapping spots for a pin
